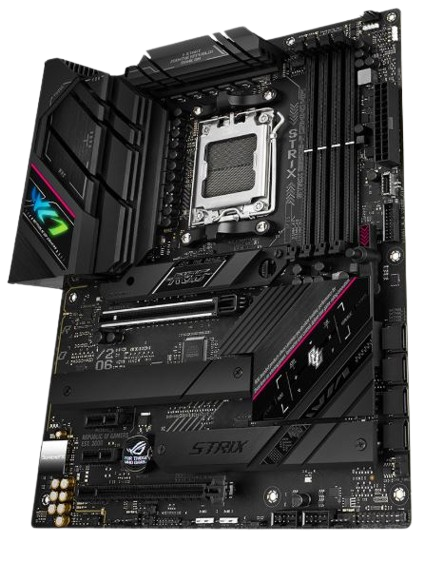

ASUS ROG STRIX B650E-F Gaming Motherboard (AMD AM5, DDR5, PCIe 5.0)

Description

The ASUS ROG STRIX B650E-F represents excellent value in the AMD AM5 motherboard market, providing enthusiast-grade features including PCIe 5.0 M.2 support and robust power delivery at a price point below the flagship X670E boards. The AM5 socket supports AMD Ryzen 7000 series processors from the entry-level Ryzen 5 7600 through the Ryzen 9 7950X3D, providing a platform foundation that accommodates significant CPU upgrades without board replacement. The 18+2 power stage VRM with 110A power stages per phase provides clean, stable voltage delivery to even the most demanding Ryzen processors under overclocking conditions. Four DDR5 DIMM slots support up to 192GB of memory with speeds up to DDR5-7200+ via EXPO and XMP profiles, future-proofing the platform against increasing memory requirements. The PCIe 5.0 x16 primary slot supports the latest GPU generations and future GPUs that will utilize PCIe 5.0 bandwidth. Two M.2 slots with PCIe 5.0 support deliver sequential storage speeds beyond 10,000MB/s with compatible drives, while two additional PCIe 4.0 M.2 slots accommodate standard high-performance NVMe drives. The networking suite includes a 2.5G Intel Ethernet controller and Wi-Fi 6E with Bluetooth 5.3 for comprehensive connectivity options. The rear I/O panel provides USB 3.2 Gen 2×2 Type-C, multiple USB-A ports, HDMI, DisplayPort, and audio I/O. ROG’s BIOS is widely considered the most user-friendly in the enthusiast market, with intuitive overclocking tools and comprehensive fan control. Aura Sync RGB integration covers the motherboard’s lighting accents and headers for connected components.
